Pin Type Anchor Bolt Manufacturer in Pune, India

Pin Type Anchor Bolt

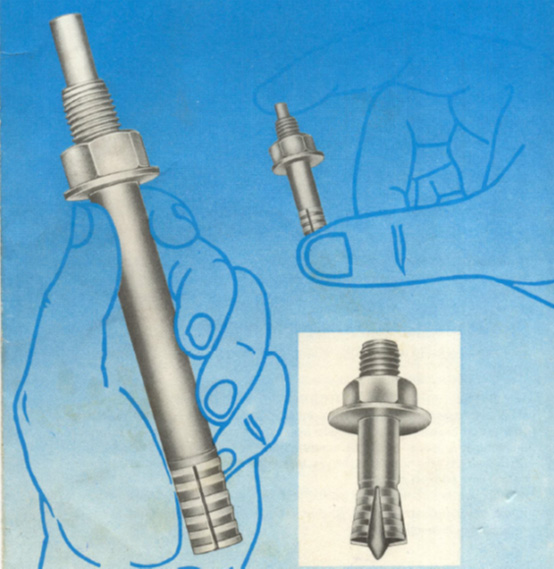

Pin type anchor bolt size range M6 to M19

Aim Tech Engineering is a leading pin type anchor bolt manufacturer in Pune, supplying precision-engineered anchor fasteners to civil construction, infrastructure, and industrial machinery sectors across India. Our pin type anchor bolts are designed for reliable concrete anchoring, delivering high tensile and shear strength in a simple, tool-free installation format.

Available in M6 to M19 diameters and a full range of lengths, each bolt is manufactured to IS, DIN, and ASTM standards with mild steel and stainless steel material options. Whether you need 10 pieces or 10,000, we offer custom sizing and bulk supply from our Pune facility.

Sr. No Code Number Size Average Loads
Dia Length Tensile (Pull Out) Shear
1 AM-F-M6 X 35 6mm 35mm 350 Kgs 700 Kgs
2 AM-F-M8 X 40 8mm 40mm 750 Kgs 1200 Kgs
3 AM-F-M8 X 50 8mm 50mm 750 Kgs 1200 Kgs
4 AM-F-M10 X 50 10mm 50mm 1250 Kgs 2000 Kgs
5 AM-F-M10 X 60 10mm 60mm
6 AM-F-M10 X 75 10mm 75mm
7 AM-F-M12 X 60 12mm 60mm 1750 Kgs 3000 Kgs
8 AM-F-M12 X 75 12mm 75mm
9 AM-F-M12 X 100 12mm 100mm
10 AM-F-M14 X 125 14mm 125mm 2100 Kgs 4000 Kgs
11 AM-F-M14 X 150 14mm 150mm
12 AM-F-M16 X 100 16mm 100mm 2750 Kgs 5000 Kgs
13 AM-F-M16 X 125 16mm 125mm
14 AM-F-M16 X 150 16mm 150mm
15 AM-F-M16 X 200 16mm 200mm 3870 Kgs 7000 Kgs
16 AM-F-M19 X 150 19mm 150mm
17 AM-F-M19 X 200 19mm 200mm 3870 Kgs 7000 Kgs

What Is a Pin Type Anchor Bolt?’

A pin type anchor bolt is a mechanical fastening device used to secure structural elements, machinery bases, and equipment to concrete, masonry, or stone surfaces. The anchor works through an expansion mechanism: when a steel pin is driven into the pre-installed sleeve, it expands radially against the drilled hole walls, creating a friction-based grip. This results in high pull-out resistance without the need for epoxy or chemical bonding.

Applications of Pin Type Anchor Bolts

  • Pin type anchor fasteners are used across a wide range of industrial and construction applications in India. The expansion mechanism and high load capacity make them suitable for:
  • Machine foundation anchoring — fixing compressors, pumps, and CNC equipment bases to RCC slabs
  • Civil construction — securing structural base plates, beams, and columns to RCC foundations
  • Infrastructure projects — bridges, flyovers, highway crash barriers, and signage gantries
  • Electrical and mechanical panels — mounting cable trays, switchgear, conduit supports, and control panels
  • Steel structures and fabrication — anchoring purlins, columns, and industrial racking systems
  • Power plants and substations — securing equipment frameworks and busbar support structures

Why Choose Aim Tech Engineering?

  • IS / DIN / ASTM Compliant Manufacturing — all pin type anchor bolts meet standard dimensional and mechanical requirements for government and infrastructure procurement
  • 25 Years of Manufacturing Experience — trusted by EPC contractors, infrastructure firms, and industrial plants across India since 2000
  • ISO 9001:2015 Certified — quality management system ensures consistent production standards across all batches
  • Wide Size Range — M6 to M19, 35mm to 200mm, covering light-duty MEP work to heavy industrial machinery anchoring
  • Material Options — Mild Steel, Stainless Steel SS304/SS316, Zinc Plated, Hot-Dip Galvanised for all environments
  • Custom Manufacturing — non-standard sizes and lengths manufactured per client drawings or project specifications
  • Bulk Supply Capability — suitable for large project orders from EPC contractors, infrastructure developers, and manufacturing plants across Maharashtra and India
  • Made in Pune — manufactured at our Nandoshi facility with quality-controlled production and fast dispatch

FAQs — Pin Type Anchor Bolt

1. What is a pin type anchor bolt and what is it used for?
It's a fastener that grips concrete from the inside. You drill a hole, push the bolt in, and hit it with a hammer. It expands inside the hole and locks in place — ready to hold a machine base, base plate, panel, or bracket. No glue, no waiting.
2. Which size pin type anchor bolt do I need for my job?
For light work like cable trays and conduit brackets, 6mm or 8mm is enough. For electrical panels and small equipment, use 10mm. For machine bases and structural base plates, go with 12mm or 14mm. For heavy compressors, large pumps, or infrastructure work, use 16mm or 19mm. Not sure? Tell us what you're fixing — we'll confirm the right size.
3. How much weight can a pin type anchor bolt hold?
A 6mm bolt holds up to 350 kg. A 10mm holds up to 1,250 kg. A 12mm holds up to 1,750 kg. A 16mm bolt at full depth holds up to 3,870 kg. Keep in mind — vibrating machines like compressors push sideways on the bolt, not just downward. Always check the sideways strength, not just the pull-out figure.
4. Can I use these anchor bolts on any wall or floor surface?
It works on solid concrete, hard stone, and solid brick. It does not work on hollow blocks, lightweight AAC blocks, or damaged old concrete — the bolt needs solid material around it to grip. If your surface is hollow block or AAC, call us and we'll suggest the right alternative.
5. What material should I choose — normal steel, galvanised, or stainless steel?
For dry indoor locations, normal zinc-coated mild steel is fine. For outdoor or rain-exposed areas, go with hot-dip galvanised. For coastal regions like Mumbai or Ratnagiri, use stainless steel SS304. For chemical plants or pharma facilities, SS316 is the right choice. Getting this wrong is costly — replacing a corroded anchor after installation is far harder than choosing the right material upfront.
6. Are these bolts made to IS standard and do you provide certificates?
Yes. Every bolt is manufactured to IS, DIN, and ASTM standards — the same standards asked for in government and EPC tenders. We are ISO 9001:2015 certified. Material test certificates and compliance documents are available on request. Just mention it when you enquire.
