Picture this: a heavy load is being lifted on site, the rigging looks fine, but suddenly the fastener slips. The lift stops, work is delayed, and safety is compromised all because the wrong bolt was used. This situation is more common than it should be. Many teams confuse lifting fasteners with clamping fasteners, especially when choosing between eye bolts and U bolts.

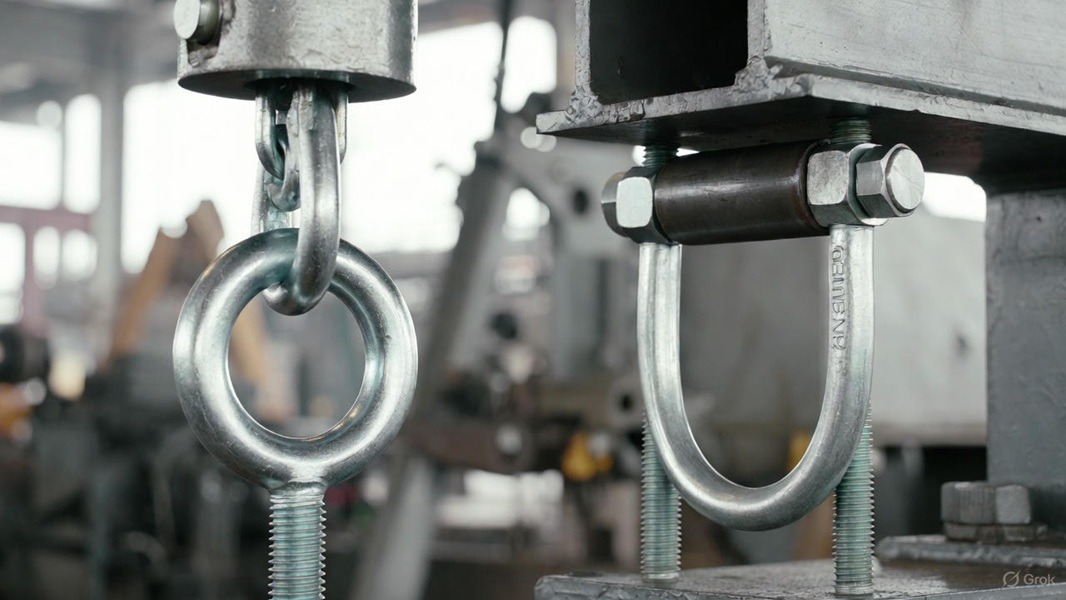

Understanding the difference between an eye bolt and a U bolt can save time, prevent costly rework, and reduce serious safety risks. While both are widely used industrial fasteners, they serve very different purposes. In this guide, we break down their design, uses, materials, performance, and safety considerations so you can confidently choose the right fastener for your application.

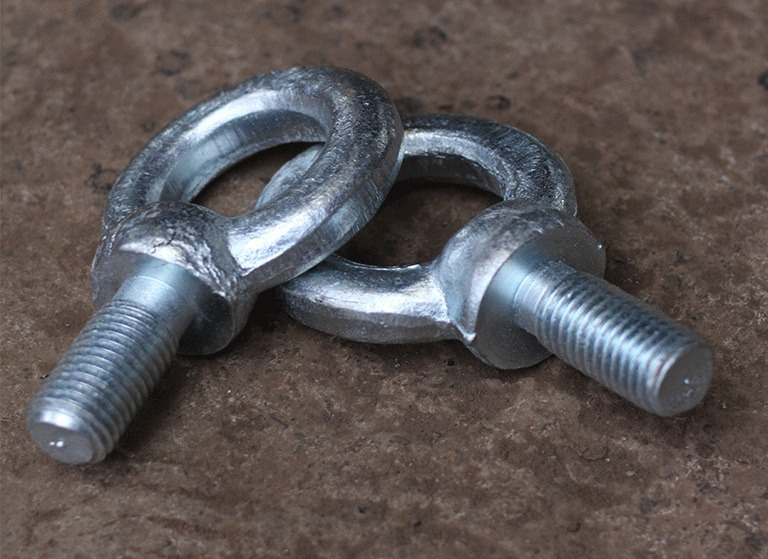

An eye bolt is a fastener with a threaded shank and a closed loop, or “eye,” at one end. The eye provides a secure attachment point for hooks, chains, wire ropes, or slings, making eye bolts ideal for lifting and rigging applications.
Eye bolts are primarily used where loads need to be lifted, suspended, or anchored in a controlled and safe manner.

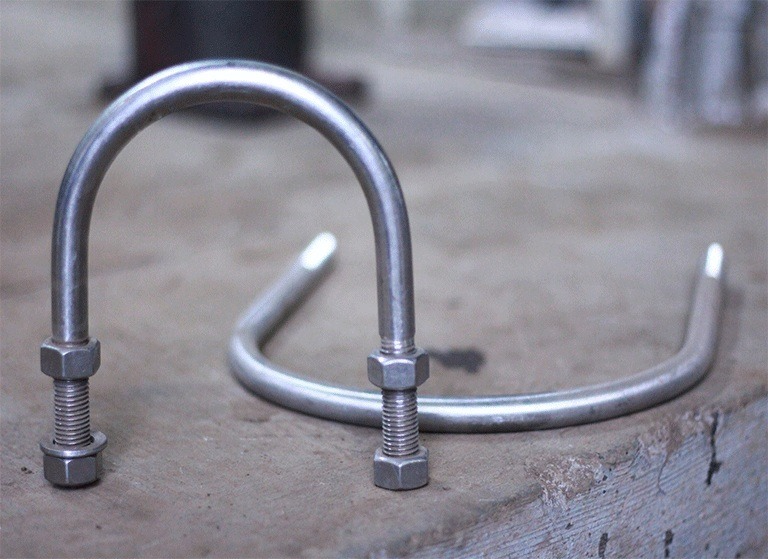

A U bolt is a U-shaped rod with threads on both ends, typically supplied with nuts and sometimes a saddle plate. U bolts are designed to encircle and secure pipes, tubes, or round components to a structure.
Note : On foundationbolts.net, U bolts are referred to as U Clamps, which is a common industry synonym.
U bolts are not designed for lifting. Their role is clamping, holding, and supporting components securely in place.
| Feature | Eye Bolts | U Bolts |
|---|---|---|
| Shape | Closed loop with threaded shank | U-shaped rod with two threaded ends |
| Primary Use | Lifting, rigging, anchoring | Securing pipes, tubes, structures |
| Load Direction | Inline or angled (with shoulder) | Radial compression around objects |
| Load Rating | Lifting-rated WLL (0.5–10+ tons) | Designed for hold-down, vibration |
| Installation | Screws into tapped hole | Encircles object, tightened with nuts |
| Materials | MS, EN steel, SS | MS, GI, SS |
| Standards | DIN 580, ASME | IS 1367, ASTM, DIN |
| Safety Role | Critical lifting component | Structural support component |
Pro Tip : Never use eye bolts to secure pipes or U bolts for lifting loads. Each is engineered for a specific load behavior, and misuse can lead to shear failure or slippage.
Industry Example
In shipyards, eye bolts are used to lift heavy assemblies, while U bolts secure railings, pipes, and structural supports. Each fastener plays a different but equally important role.
Choosing the right material ensures safety, durability, and long-term cost efficiency.
If the application involves lifting, choose an eye bolt. If it involves securing pipes or components, choose a U bolt.
Eye bolts and U bolts may look similar, but their functions are entirely different. Understanding their design and applications helps ensure safer operations, better performance, and long-term reliability. Always match the fastener to the job and prioritize safety over convenience.
